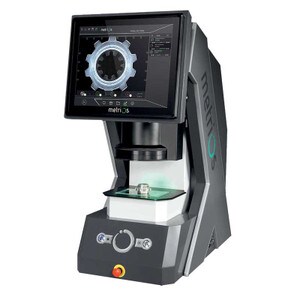

METRIOS Fixed Stage Optical Measuring Machine
Product Information
Description

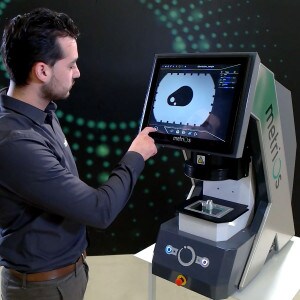

METRIOS is a state of the art, automatic and digital optical measuring machine designed for shopfloor inspection.
It performs accurate and objective quality tests directly in production, when parts are incoming or during final inspection prior to shipment, thus increasing productivity and reducing costs.
METRIOS Fixed Stage Optical Measuring Machine is available in two models - standard and HD, designed to measure small components, up to 95 x 65 mm.
Metrios collects data about production trends. An easy-to-read panel allows the operator to monitor these trends and adjust parameters in advance to keep production in tolerance. Doing so leads to considerable reductions in machine down time and manufacturing waste, helping to drive up productivity.
Specifications
- Specifications:
Metrios
Field of view: 95 x 65 mm, Max piece size on Z axis: 100 mm, Max weight: 3.0 Kg, Accuracy: (5+0.01L [mm]) [µm], Repeatability: (2+0.01L [mm]) [µm]Metrios HD
Field of view: 23 x 23 mm, Max piece size on Z axis: 100 mm, Max weight: 2.0 Kg, Accuracy: (2,5+0.01L [mm]) [µm], Repeatability: (1,5+0.01L [mm]) [µm]
Features
SPEED Takes even complex measurements in a matter of seconds. Distances, radii, diameters, angles, straightness, roundness, as well as elements constructed on virtual lines.

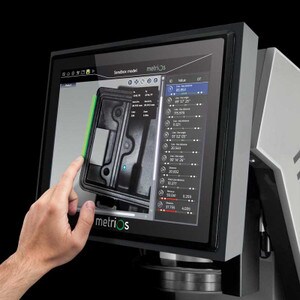

INTUITIVE A simple, intuitive click provides all the measurements required.
OBJECTIVITY Consistent results unconditioned by the operator.
TRACEABILITY Automatic data saving and instant measurement reports.
CUSTOMIZED In-house software development to meet the users’ requirements.
Info and Guides
PRODUCT SERIES
| ID# | Product Name | Price |
|---|---|---|
| Metrios-Cross-Sliding-Stage | Metrios-Cross-Sliding-Stage Optical Measuring Machine | Quote |
