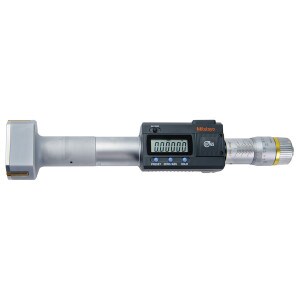

Mitutoyo 468-270 HTD Digimatic Holtest Internal Micrometer

Brand: Mitutoyo
ID#: 468-270-MIT
|MFGID: 468-270
$1,213.69

Product Information

Description

Mitutoyo HTD 468-270 2.5”R, 468-270 Digimatic Holtest, three point Internal Micrometer features TiN-coated contact points that provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole. (up to 100mm / 4" models). Other features include a large, LCD readout, presetting, zero/ABS, power On/Off data hold, data output, error alarm, battery replacement alarm and ratchet stop for constant force. This internal micrometer can measure deep holes by attaching an extension rod (optional). Another option includes setting ring for origin point setting. It is supplied in a fitted case. This model has a measuring range of 2-2.5" / 50.8-63.5mm.

Specifications

  • Range:2-2.5" / 50.8-63.5mm
  • Type:Three Point , Internal
  • Accuracy:.0001in
  • Resolution:0.001mm or .00005"/0.001mm (over 5" models: .0001"/0.001mm)
