Mitutoyo 500-505-10 Absolute Caliper 0-18"/450mm-No ThumbRoller

by Mitutoyo
ID#: 500-505-10-MIT
|MFGID: 500-505-10
Your Price:
$832.89
  • Retail Price: $844.00
  • Your Savings: 11.110000000000014
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Caliper: 6.1" to 18" (+ $29.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

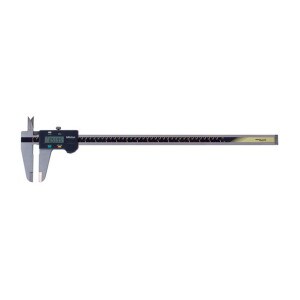

Mitutoyo 500-505-10 Absolute Digimatic Caliper has a measuring range of 0-18"/ 450mm with .0005"/ 0.01mm. Includes SPC Data output but does not have a thumbroller. Features also include a large, clear LCD readout, inch/metric conversion and a Zero/Absolute key that allows the display to be zero-set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point, which is usually the jaws-closed position.

Specifications

  • Range:0 -18”/450mm
  • Type:Absolute
  • Accuracy:+/- .002"
  • Resolution:.0005"/0.01mm
