Mitutoyo 543-341B Calculation Type Indicator .5"/12.7mm, 8mm Stem

Brand: Mitutoyo
ID#: 543-341B-MIT
|MFGID: 543-341B
$493.77

Product Information

Description

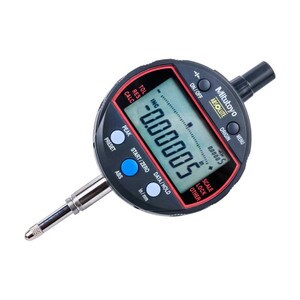

Mitutoyo 543-341B Digimatic Indicator ID-C has a measuring range of .5*=12.7mm, 12 Step Selectable resolution, SPC output and an IP rating of 42. It has a stem diameter of 8mm and a flat back. Other Features include: • Calculation function operates on spindle displacement. • Entering the appropriate formula factors for a fixture dedicated to the application enables direct measurement readout, thereby eliminating any need for the conversion tables previously needed for those applications where fixtures are typically used. • Peak-Value TIR/MAX/MIN Hold enables GO/±NG judgement for peak value. • Simple operation of many functions with five buttons and status icons. • Wide LCD and analog bar graph are now standard on all models. • It performs sampling in fifty times per second and it enables to detect peak value more correctly.

Specifications

  • Range:.5" = 12.7 mm
  • Type:ID-C Indicator
  • Resolution:Selectable
