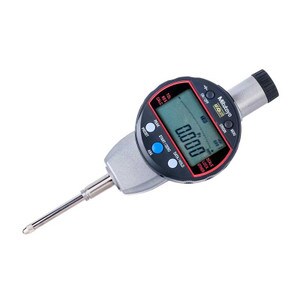

Mitutoyo 543-590B Calculation Type Indicator 25.4mm, 8mm Stem

Description

Mitutoyo 543-590B Digimatic Indicator ID-C has a measuring range of 25.4mm, 12 Step Selectable resolution, SPC output and an IP rating of 42. It has a stem diameter of 8mm and a flat back. Other Features include: • Calculation function operates on spindle displacement. • Entering the appropriate formula factors for a fixture dedicated to the application enables direct measurement readout, thereby eliminating any need for the conversion tables previously needed for those applications where fixtures are typically used. • Peak-Value TIR/MAX/MIN Hold enables GO/±NG judgement for peak value. • Simple operation of many functions with five buttons and status icons. • Wide LCD and analog bar graph are now standard on all models. • It performs sampling in fifty times per second and it enables to detect peak value more correctly.
