Mitutoyo 64PKA026A Grinder Package Glass Linear Scale 6"X12" w/KA-200 DRO

Brand: Mitutoyo
ID#: 64PKA026A-MIT
|MFGID: 64PKA026A
$1,568.94
QuantityPrice

Product Information

Description

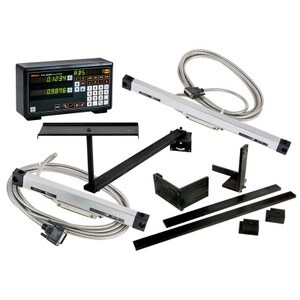

Mitutoyo 64PKA026A Grinder Package, Glass Linear Scales, 6" X 12" with KA-200 DRO. Manual machine retrofit packages with linear scales, mounting brackets, and multiple feature, intuitive KA-200 Counter display, now with many features such as Absolute & Incremental modes (10 presets each), non-linear error compensation, function lock, adjustable LED intensity, and optional USB output directly to spreadsheets. X-Z Travel Range is 6”x12”. X Axis Type AT116; Z Axis Type AT116.

Specifications

  • Range:X-Z Travel Range is 6”x12”.
  • Type:X Axis Type AT116; Z Axis Type AT116
  • Details:Package includes KA-200 Counter (2 or 3 axis), Mounting Brackets, Counter Tray, and Linear Scales with cables
  • Resolution:Selectable resolution down to .0001” or better
