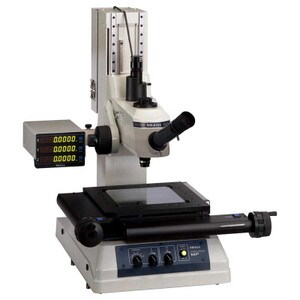

Mitutoyo MF-A1010D 64PKA090A Measuring Microscope 4x4"

Brand: Mitutoyo
ID#: 64PKA090A-MIT
Your Price:
Specifications and/or Special Freight Requirements Apply
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information


Mitutoyo MF-A1010D 64PKA090A Measuring Microscope 4x4"-100x100mm XY 30x magnification LED & Monocular Tube - expandability, such as when used in combination with Mitutoyo's vision unit to boost its performance or data management on a PC, promises further improved measuring efficiency. Features include observation with a clear and flare-less erect image and a wide field of view. Measuring accuracy that is the highest in its class (and conforms to JIS B 7153). The reflected and transmitted illumination unit is selectable from a high-intensity LED or halogen bulb. The variable aperture diaphragm allows observation measurement while suppressing light diffraction. The quick-release mechanism is useful for moving the stage quickly when measuring workpieces that are large in size or quantity. Has a coarse, fine feed handle that is standard on both sides and allow precise focus and observation measurement regardless of handedness. Includes a high-magnification eyepiece that can observe up to 2000x. This model has a 4x4"-100x100mm XY Stage Travel Range, 11x11" 280x280mm XY Stage Top Size. This model has 30x magnification with LED illumination and Monocular Tube. Readout type is 2-axis.


  • Range:XY stage travel range:16x8"-400x200mm; Z-axis travel range:8.7"-220mm
  • Type:Measuring
  • Accuracy:XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153
  • Resolution:.0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm
