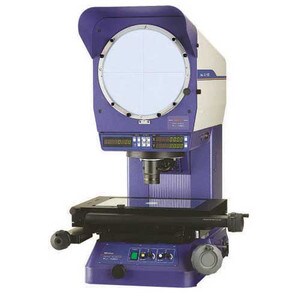

Mitutoyo PJ-H30D3017B Vertical Profile Projector 12" Screen 300x170 XY

Description

Mitutoyo 303-735-1A, PJ-H30D3017B High Accuracy Profile Projector 12" Screen features a separating axial motion and stabilizing XY measuring table in the vertical direction achieving high measuring accuracy of (3+0.02L)ìm. These PJ-H30D models provide power focusing with built-in OPTOEYE. The power focusing provides higher performance. This newly designed optical system with high NA lenses provide drastically brighter and clearer screen images during surface illumination. The three-lens mounting turret includes a 10X lens as standard. Four types of projection lenses (5X, 20X, 50X, 100X) are available. This PJ-H30D Type has a 300x170 XY Travel Range. *Lenses, Options and Accessories SOLD SEPERATELY. Please contact Customer Service to determine the necessary specifications for your needs.
