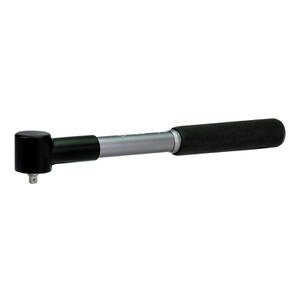

Mountz 076569 FGC-30A Cam-Over Wrench (3/8" Sq Dr.)
Brand: Mountz
ID#: 076569-MTZ
Product Information
Description
The FGC is a next-generation cam-over wrench by Mountz Torque. The torque wrench prevents over-torque events and safeguards against fastening failures. Implementing this error-proofing wrench removes the operator's influence out of the torque equation and delivers an accurate and repeatable fastening result than a standard click type wrench.- Cam-over technology ensures correct torque is applied and eliminates fastener breakage issues
- Poka-yoke torque wrench prevents over-torque, as a click wrench cannot
- Error-proofing assembly process
- Safeguards against fastening failures
- Calibration life 2x ISO standards, unmatched by any wrench
- A preset wrench ideal for fastening applications where operators repeatedly assemble parts at the same torque setting
- A preset production torque wrench
- Tool is set to a designated torque value and the correct torque value is consistently applied
- Internal locking mechanism prevents incidental torque setting changes and ensures fastening precision and repeatability
- Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer
- Non-length dependent
- Non-strip ratchet head
- Wrench tightens in the CW direction only
- Coated corrosion-resistant stainless steel head
- Anodized aluminum handle
- Ergonomic cushion grip reduces discomfort, fatigue, and risk of injury
Specifications
- Range:4.4-22.1 lbf.ft/6-30 N.m
PRODUCT SERIES
ID# | Product Name | Price |
---|---|---|
076565-MTZ | Mountz 076565 FGC-5 Cam-Over Wrench (1/4" Sq Dr.) | $540.88 |
076566-MTZ | Mountz 076566 FGC-10D Cam-Over Wrench (1/4" Sq Dr.) | $646.43 |
076567-MTZ | Mountz 076567 FGC-10A Cam-Over Wrench (3/8" Sq Dr.) | $646.43 |
076568-MTZ | Mountz 076568 FGC-30D Cam-Over Wrench (1/4" Sq Dr.) | $672.81 |
076569-MTZ | Mountz 076569 FGC-30A Cam-Over Wrench (3/8" Sq Dr.) | $672.81 |
076570-MTZ | Mountz 076570 FGC-75 Cam-Over Wrench (3/8" Sq Dr.) | $826.72 |
076571-MTZ | Mountz 076571 FGC-125 Cam-Over Wrench (1/2" Sq Dr.) | $967.44 |
