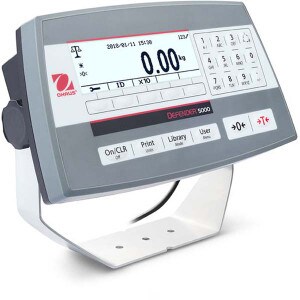

OHAUS Indicator TD52P AM, TD52P (30424078)
Brand: OHAUS
ID#: 30424078-OHS
Product Information
Description
OHAUS Indicator TD52P AM, TD52P (30424078)See results clearly on the large backlit display. The alphanumeric keypad & function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including RS232/RS485/USB device, Ethernet & Bluetooth/WiFi. Analog Output & Discrete I/O with relays.
Features common industrial modes & supports a 50,000 item library & 1,000 user profiles which can be downloaded/uploaded for easy set-up (with SD Card). GMP/GLP with time/date for result traceability.
Specifications
- Specifications:Battery Life: 20 Hours with Rechargeable Battery
Communication: Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232 (Included);USB (Available as an Accessory);WiFi/Bluetooth (available as an accessory)
Country of Origin: CN
Dimensions Width: 75 mm (3 in)
Dimensions Height: 192 mm (7.6 in)
Dimensions Length: 265 mm (10.4 in)
Display: Dot matrix LCD with white LED backlight
Legal for Trade: NTEP Certified;Measurement Canada Approved
Net Weight: 1.5 kg (3 lb)
Outputs: 4 - 20mA;2 In/4 Out digital I/O
Power: Rechargeable Battery (Not Included);AC Power (Included)
Protection Rating: Not applicable
Resolution: 75,000
Resolution Certified: 10,000
Second Scale Input: Not applicable
Tare Range: To capacity by subtraction
Units of Measure: Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce
Working Environment: -10°C – 40°C, 85%RH, non-condensing
Working Environment: 14°F – 104°F, 85%RH, non-condensing
