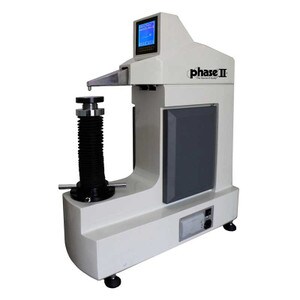

Phase II 900-384 Twin Rockwell Superficial Motorized Hardness Tester
Brand: Phase II
ID#: 900-384-PHT
Product Information
Description
Phase II 900-375 Twin Rockwell Superficial Analog Hardness Tester The test force is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit that replace traditional dead weights. The result is highly accurate hardness test measurements at all test loads up to 0.5%.Simple plug - and - play tech allows for much more quick and easy installation than traditional dead weight type machines.Extended dolphin nose allows vertical hardness test height of 11.8” and throat depth of 8.6”.Built-in micro-printer.Specifications
- Specifications:Preload: 29.4N?3kgf?, 98.1N (10kgf)
Total test force: 147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf), 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
Scales: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y, HRA?HRB?HRC?HRD?HRE?HRF, HRG?HRH?HRK?HRL?HRM?HRP, HRR? HRS?HRV
Load dwell duration: 2?50s, can be set and stored
Resolution : 0.1HR
Display: High definition backlight LCD
Operation: Menu selectable, Membrane keypad Upper-lower limits setting & alarming
Data statistics: Avg., Max., Min., S, R Curved surface auto correction
Memory: 400 test results stored automatically
Testing Capacity: Vertical: 11.8” (300mm) , Depth: 8.6” (220mm)
