Phase II 900-391A Micro Vickers Hardness Tester with Auto Turret

Brand: Phase II
ID#: 900-391A-PHT
|MFGID: 900-391A
Your Price:
$11,136.32
QuantityPrice
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

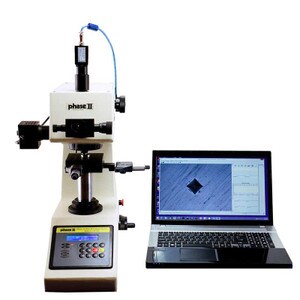

Phase II 900-390B Micro Vickers Hardness Tester with Auto Software This Micro Vickers hardness tester is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments.
Model No. 900-391A: Includes Video cam, adapter and manual measurement software

Specifications

  • Specifications:Testing Range: 1HV-2967HV
    Test Force: 0.098N(10g), .246N(25g), .49N(50g), 0.98N(100g) 1.96N(200g), 4.90N(500g), 9.80N(1000g)
    Max Height of the Specimen: 70mm
    Max Distance from the Indenter Center to the Instrument Panel: 95mm
    Lens-indenters with: With Hand Turret
    Carriage Control: Automatic (loading-holding-up of the load-unloading)
    Amplification of the microscope: 100x, 400x
    Dwell Time of the Test Force: (5-60)S
    Min.Graduation Value of the Testing Drum Wheel: 0.25µm
    Dimension of the XY Table: 100x100mm
    Movement Field of the XY Table: 25x25mm
