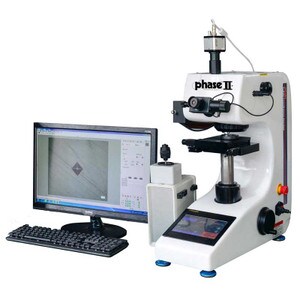

Phase II 900-505 Fully Automated Micro Vickers Hardness Tester
Brand: Phase II
ID#: 900-505-PHT
Product Information
Description
Phase II 900-440 Twin Rockwell Superficial Hardness Tester with Load Cell and Touch Screen covers the load range from 10g to 1kg. Conforming to ASTM E-384-92 vickers hardness testers standards, the 900-505 series micro vickers hardness testers will offer unmatched repeatability. This micro Vickers hardness tester can toggle back and forth between Vickers and Knoop measurement. A perfect rugged performer suited for any environment.Our advanced line of Micro Vickers hardness testers are state-of-theart, precise testing systems suitable for Vickers hardness analysis of metallic specimens in metallography laboratories or production environments.The Phase II micro-vickers hardness testers are versatile and userfriendly systems, designed for the accurate hardness testing of small precision parts, thin materials, coatings, wires and case depth determinations. The Phase II 900-505 micro-vickers hardness tester includes Automated X-Y-Z platform and controllers along with Auto- Turrett, Video Cam, Adapter, USB Output Cable and Automatic Measurement Software. Phase II vickers hardness testers are offered with a 5 year warranty and free lifetime technical support.Specifications
- Specifications:Test Forces: (gf) and (Nm) 10, 25, 50,100, 200, 300, 500, 1000(1K) gf 98, 245, 490, 980, 1960, 2940, 4900, 9800 Nm
Test Scales: Vickers Scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Knoop Scales:: HK0.01, HK0.025, HK0.05, HK0.1, HK0.2, HK0.3, HK0.5, HK1
Test mode: HV - HK
Test force application: Automatic ¡VLoading-Dwell-Unloading
X-Y-Z Testing Table: Dimension: 100x100mm; Travel: 25x25 mm; Revolving power: 0.002mm
Selection of hardness scale conversions
Dwell time of the test force: 0~90s (5 sec increments)
Turrett: Toggle between indenters and objectives. Automatic and manual selectable
