Q-Mark AFG-1533-DS1-SN M5 1.5 mm Silicon Nitride tipped, Cylinder Stylus, L 33.0 mm, EWL 24 mm

Brand: Q-Mark
ID#: AFG-1533-DS1-SN-QMK
Your Price:
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

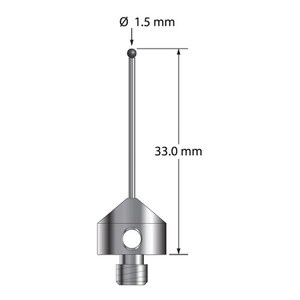

M5 stylus with 1.5 mm diameter silicon nitride ball, 1.0 mm diameter carbide stem, and 11.0 mm diameter x 9.0 mm long stainless steel base. Overall stylus length is 33.0 mm. Stylus weight is 5.78 grams. Compare to Zeiss 000000-1323-893.


  • Details:Thread-Connector: M5
    Ball Diameter: 1.5 mm
    Tip Material: Silicon Nitride
    Effective Work Length: 24 mm
    Stem Material: Tungsten Carbide
    Base Material: Steel
    Base Diameter: 11.0 mm
