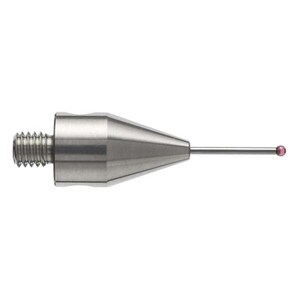

Renishaw A-5003-0050 M3 Ø1.5 mm ruby ball, tungsten carbide stem, L 20 mm, EWL 12.5 mm

Brand: Renishaw
ID#: A-5003-0050-REN
|MFGID: A-5003-0050
$41.46

Product Information

Description

Renishaw A-5003-0050 M3 Ø1.5 mm ruby ball, tungsten carbide stem, L 20 mm, EWL 12.5 mm

Specifications

  • Details:
    Connection Type In: M3
    Ø Sphere (DK): 1.5
    Length (L): 20
    Measure Length: 12.5
    Stylus Type: Straight Stylus
    Tip Material: Ruby
    Stem Material: Tungsten Carbide

    Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. Equivalent to Q-Mark part number: TM3-1522
