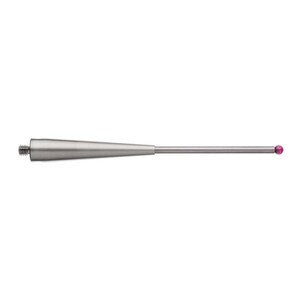

Renishaw A-5003-5254 M5 Ø3 mm ruby ball tungsten carbide stem, L 100 mm, EWL 55 mm

Specifications

• Details:
  Connection Type In: M5
  Ø Sphere (DK): 3
  Length (L): 100
  Measure Length: 55
  Stylus Type: Straight Stylus
  Tip Material: Ruby
  Stem Material: Tungsten Carbide

  This straight stylus can be used for simple features with which direct contact can be made. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters.
