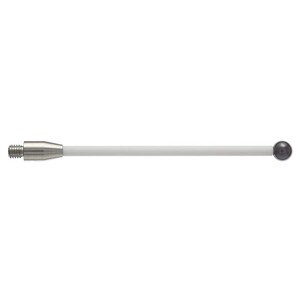

Renishaw A-5003-5725 M3 Ø4 mm silicon nitride ball, ceramic stem, L 50 mm, EWL 46 mm

Specifications

• Details:
  Connection Type In: M3
  Ø Sphere (DK): 4
  Length (L): 50
  Measure Length: 46
  Stylus Type: Straight Stylus
  Stem Material: Ceramic

  Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A ceramic stem is lightweight yet very stiff and offers built-in crash protection. Silicon nitride is similar to ruby in terms of its physical properties. Its lower coefficient of friction makes it ideal for use with most scanning applications, particularly aluminium parts. Silicon nitride is not recommended for scanning cast iron due to abrasive wear. Equivalent to Q-Mark part number: TM3-4052-C-SN
