Renishaw A-5555-0040 M5 Ø10 mm ruby ball, tung carb stem, L 118 mm, ML 105 mm, Zeiss appl.

Brand: Renishaw
ID#: A-5555-0040-REN
|MFGID: A-5555-0040
Your Price:
$68.79
QuantityPrice
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Renishaw A-5555-0040 M5 Ø10 mm ruby ball, tungsten carbide stem, L 118 mm, ML 105 mm, for Zeiss applications

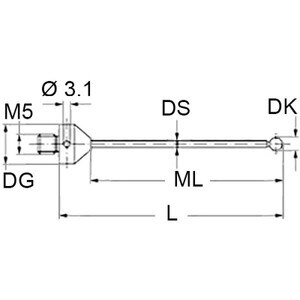

Specifications

  • Details:
    Connection Type In: M5
    Ø Sphere (DK): 10
    Length (L): 118
    Ø Shaft (DS): 6
    Ø Body (DG): 11
    Measure Length: 105
    Stylus Type: Straight Stylus
    Tip Material: Ruby
    Stem Material: Tungsten Carbide
    Weight: 47.3 lbs

    M5 straight stylus. Equivalent to Zeiss part number: 602030-9018-000. Equivalent to Q-Mark part number: ATG-100118. Note: measurement length is to end of ball.
