Starrett 229 Series Telescoping Gage 1-1-4-2-1-8"-32-54mm w-2-3-8"w-60mm Handle

Brand: Starrett
ID#: 229C
|MFGID: 229C
Your Price:
$59.37
Ships from manufacturer
Typically ships in 2 to 3 weeks
Some orders take up to 8 weeks · Based on 251 recent orders from this manufacturer
Estimated ship date emailed once the manufacturer confirms your order.
Add Calibration w/ Certificate?
No
  • No
  • Yes (adds additional handling time) - Contact Me With A Quote
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

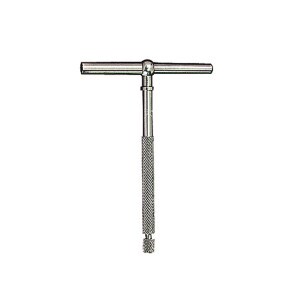

The Starrett Telescoping Gages are used for determining the true size of holes, slots and recesses up to 6"-150mm. Features a handle, one rigid contact arm and one spring-tensioned telescoping contact arm. The ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter. These tools must slightly "rocked" in the hole being measured to ensure that the tool is on the proper diameter before it is locked and withdrawn. The final hole size is obtained by measuring over the gage contacts with a micrometer. This model, 229C has a measuring Range of 1-1-4 to 2-1-8" - 32 to 54 mm with a 2-3-8" - 60 mm Handle.

Specifications

  • Range:1-1-4 to 2-1-8" - 32 to 54mm
  • Type:Telescoping gage
