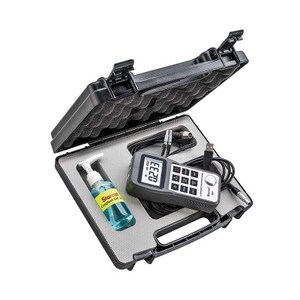

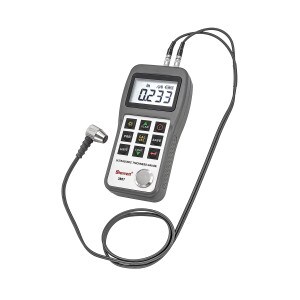

Starrett 3807 Ultrasonic Thickness Gage

Brand: Starrett
ID#: 3807-STR
|MFGID: 3807
$1,835.62

Product Information

Description

State of the art, digital ultrasonic thickness Gage is packed with features typically found on high end models only. The 3807 Ultrasonic Thickness Gage offers everything from basic measurement, Thru Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and other ultrasonic wave conductors with parallel top and bottom surfaces. Accurately displays readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Specifications

  • Accuracy:± (0.5% thickness + .001")
  • Specifications:Measures steel, aluminum titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor.

Features

  • Measuring Range, Pulse-Echo: 0.025" - 23.0" in steel, Echo-Echo: .118" - 3.50", Sound velocity range; 3280 - 32805 ft/s (1000- 9999m/s)
  • Can measure up to 90mm(3.5") of steel while going through 900 micron (.035") (35mils) of coating - Accuracy; +/- (0.5% thickness + .001")
  • Display type; 4.5 -digit LCD w/Back Light, Minimum display unit; 0.001"/0.01mm (selectable), Frequency; 5MHz, Update range; 4Hz
  • Upper/Lower Limit Preset Alarm with Scanning Feature - 16 measurements/second
  • Power; 2 AA batteries life of approx. 100 hours (backlight off), Size; 5.90" x 2.91" x 1.30" x 8.6oz, Operating Temp; 32-122 degrees F
  • Memory; 20 Groups (100 files/group), Output; USB
