Starrett 3814 Analog Bench Hardness Tester, 6.69"/169.9mm, 30 x 8.5 x 20"/762 x 216 x 508mm, 6.6"/168mm
Brand: Starrett
ID#: 3814
Product Information
Description

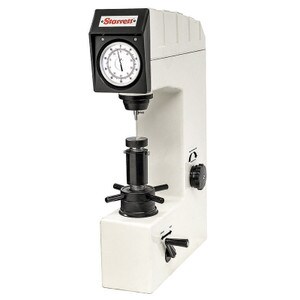

The 3814 Hardness Tester provides reliable Rockwell Hardness values on all types of metal and alloys, hard or soft, and in many shapes. This reliable bench hardness tester has a high quality casting, is ergonomically designed for easy operation and is engineered to ensure accurate results. It is an ideal basic hardness solution, economically priced to suit a variety of lab, workshop, toolroom and inspection department applications. The tester is furnished with a diamond indentor, a 1/16" (1.6mm) ball indentor, three certified test blocks, four test tables - 5.87" (149mm) and 2.5" (63.5mm) flat anvils, 5/8" (15.9mm) spot anvil and a standard vee anvil - and an accessory case.Specifications
- Details:
- Made in America: No
- Results Display: Dial
Features
- Major Load: A: 60Kgf, B: 100Kgf, C: 150Kgf
- Maximum Test Height: 6.69" (169.9mm)
- Minor Load: 10Kgf
- Results Display: Analog - Dial Gage
- Test Force Application: (Dead weight applies test force)
- Test Force Control: Hydraulic Dashpot System
- Throat Depth: 6.6" (168mm)
- Unit Height/Width/Depth: 30 x 8.5 x 20" (762 x 216 x 508mm)
Info and Guides
OPTIONAL ACCESSORIES
| ID# | Product Name | Price |
|---|---|---|
| 3814E | Starrett 3814E INDICATOR- DIGITAL- FOR HARDNESS TESTER 3814 | $996.02 |
