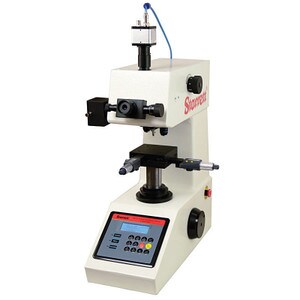

Starrett 3841A Micro Vickers Hardness Tester with Video cam, adapter and manual measurement software 02053

Brand: Starrett
ID#: 3841A-STR
|MFGID: 3841A
$14,362.65

Product Information

Description

This Micro Vickers hardness tester is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments

Specifications

  • Details:

Features

  • Testing Range: 1HV - 2967HV
  • Test Force: 0.098N(10g), 0.246N(25g)?0.49N(50g)?0.98N(100g)1.96N(200g)?4.90N(500g)?9.80N(1000g)
  • Max Height of the Specimen: 70mm
  • Max Distance from the Indenter Center to the Instrument Panel: 95mm
  • Lens/indenters with: With Hand Turret
  • Carriage Control: Automatic(loading /holding-up of the load/unloading)
  • Amplification of the microscope: 100×, 400×
  • Dwell Time of the Test Force: (5-60)S
  • Min.Graduation Value of the Testing Drum Wheel: 0.25um
  • Dimension of the XY Table: 100×100mm
  • Movement Field of the XY Table: 25 X 25mm
  • Light source/Power Supply: 110/220V,60/50Hz/Cold Light Source
  • Weight/Gross Weight:41.5kg Net Weight: 35kg
  • Package Dimensions: 425×245×490mm
