Starrett 436.1MXRL-275 Micrometer 250-275mm Ratchet Locknut Carbide

Brand: Starrett
ID#: 436.1MXRL-275-STR
|MFGID: 436.1MXRL-275
Your Price:
Add Calibration w/ Certificate?
  • No
  • Yes - Contact Me With A Quote
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

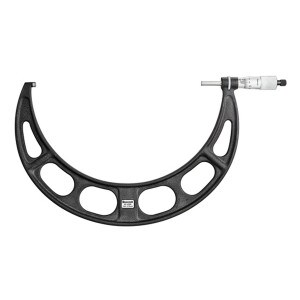

The Starrett 436.1MXRL-275 Outside Mechanical Micrometer has a measuring Range of 250-275mm, 0.01mm graduations with a Ratchet Stop, Lock Nut and Carbide, Flat Anvil and Spindle. Features a lock nut and Starrett satin chrome finish for a no-glare and rust resistance. An advanced sleeve design with staggered lines and distinct features provide precise and easy readability while its gracefully designed tapered frame makes it possible to collect measurements in narrow slots and tight places. Adjustments can be made quick and easy, has micro-lapped measuring faces and has an extremely hard and stable one-piece spindle. It is the most popular precision micrometer used by skilled workmen worldwide. It is accurate, rugged and easy to use.


  • Range:250-275mm
  • Graduation:0.01mm
  • Type:Carbide Flat Anvil, Flat Spindle. Lock Nut
  • Accuracy:+-- .007mm
  • Details:.300" (7.6mm) anvil and spindle diameters for ease of use on larger work
