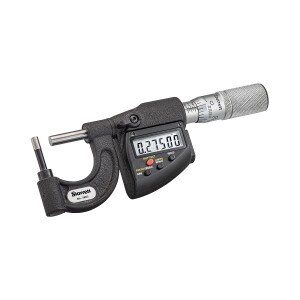

Starrett 769.1AXFL Electronic Tube Micrometer 0-1" with Output
Brand: Starrett
ID#: 769.1AXFL-STR
Product Information
Description
Starrett 769.1AXFL Electronic Tube Micrometer 0-1" with Output . The newly designed 769.1 used for measuring the wall thickness of tubing and other parts with cylindrical walls. Also for measuring from a hole to an edge (minimum hole size 3-16"). The balanced and tapered frame provides comfortable and accurate measuring and gives the right feel during use.Specifications
- Range:0-1"
- Specifications:• Equipped with an RS232 output - ideal for use with DataSure Wireless Data Collection System• Starrett no-glare satin chrome finish on thimble and sleeve• Large, easy-to-read .275" (7mm) tall characters, high contrast LCD digital readout• Extremely hard and stable one-piece spindle• Auto Off after 20 minutes of nonuse• Inch-millimeter conversion on English versions• Smooth friction thimble for uniform pressure• Measurement HOLD button• Zero at any position• Retain and return to true zero reading• Spindle lock• Data Output• Resolution: .00005" (0.001mm)• Accuracy +--.0001" (+--0.002mm)• PRESET button to install any reading at any position• Ability to set minimum and maximum limits
