Starrett Force DFC-2 Advanced Digital Force Gage-Bluetooth

Brand: Starrett
ID#: DFC-2-STR
|MFGID: DFC-2
Your Price:
$1,136.05
QuantityPrice
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Force Gauges: 0 to 100 lbs (+ $200.00)
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

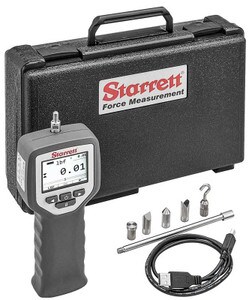

Starrett DFC-2 Advanced Digital Force Gage with Bluetooth, lbF 2 - ozF 32 - N 10 - gF 1000 - kgF 1. Includes Accessory Kit SPK-FG-A. The DFC is a revolutionary concept for force measurement using a handheld force gage. The DFC may be used as a high-accuracy handheld force gage or as a digital controller for use with the FMM Digital Force Testers. The DFC can serve as a universal interface where you set up your tests and where you configure load limits, distance limits, break limits, crosshead travel direction, crosshead speed and more. The DFC features a measurement accuracy of 0.1% full scale with internal data sampling at 25kHz. Display resolution is 10,000:1.
The DFC features Bluetooth®, USB and RS-232 communications plus digital I-O.

Specifications

  • Range:2 lbF - 32 ozF - 10 N - 1000 gF - 1 kgF
  • Type:Digital Force
  • Accuracy:0.1%
  • Details:Use as handheld instrument or mount to Starrett test frames: FMM, MTL and MTH.
    • Excellent display resolutions:
    -- DFC 10,000:1
    -- DFG 5,000:1
    • Precise and accurate load measurements:
    -- DFC 0.1% full scale
    -- DFG 0.2% full scale
    • Load sensors have safe overload rating of 200%
    • High-resolution OLED color display with adjustable backlight and Auto Off feature
    • Supplied with NIST-traceable Certificate of Calibration
    • 3-year warranty
    • Metric threads for screw-on attachments. Can be fitted with clevis adapters that fit hundreds of Starrett test fixtures
    • A primary and secondary display window shows your results. Out-oftolerance results display in red.
    • Adjustable sampling rates help you capture peak loads. Filters can be applied to peak and display values.
    • Multiple display languages.
    • Battery provides more than 30 hours of continuous operation. Charge battery using USB cable.
    • Change display (Flip feature) orientation without having to expose electronics.
    • Easy-to-use multi-function keypad. Softkeys are programmable to your most used functions.
    • Programmable sounds for alarms, such as an out-of-tolerance result
    • Cast-aluminum housing
    • Comfort grip for handheld testing applications.

Info and Guides

OPTIONAL ACCESSORIES

ID#Product NamePrice
SPK-FG-A-STRStarrett Force SPK-FG-A Force Gauge Accessory Kit Aluminum M6 $105.54
