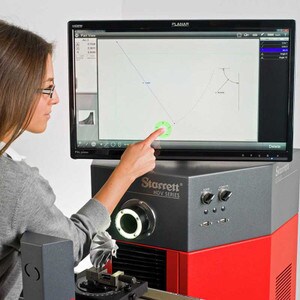

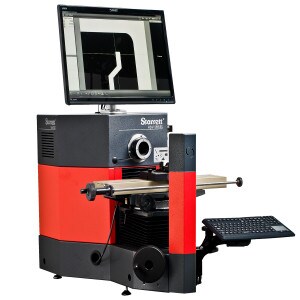

Starrett HDV300-M3-2LED Horizontal Digital Video System

Brand: Starrett
ID#: HDV300-M3-2LED
|MFGID: HDV300-M3-2LED
Quote Required
Contact MSI Viking for Virtual or In-Person Demo!
QuantityPrice
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

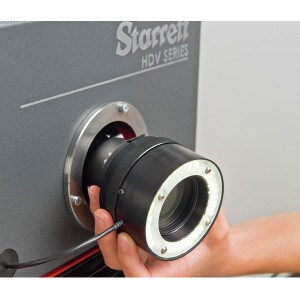

Starrett HDV300-M3-2LED HDV300 with 300mm x 150mm 12"x6" of stage travel with MetLogix M3. Lenses not included.

Specifications

  • Range:X= 12" / 300mm, Y= 6" / 150mm
  • Type:Horizontal, Bench top
  • Accuracy:E1= 3.0µm + L/33
  • Resolution:20µin (0.5µm)

OPTIONAL ACCESSORIES

ID#Product NamePrice
4422-1Starrett 4422-1 300mm Line Standard NIST cert $2,873.66
4H002-1Fixed Vise – 1-1/4” Capacity $636.25
4H003-1Rotary Vise – 1-1/4” Capacity $860.39
4H004-1Vee Block on Rotary Base $1,035.28
5584-1Starrett 5584-1 400mm Line Standard NIST traceable $3,431.51
5703Starrett 5703 System Dust Cover for HDV300 & HDV400 $42.22
5781-STRStarrett 5781 Light Shield for HDV300 & HDV400 $192.98
6306Starrett 6306 .30X Telecentric Lens with 18.5X Magnification on 24” Monitor $3,040.51
6309-3Starrett 6309-3 6.5:1 Zoom Lens $1,592.13
6331-STRStarrett 6331 .50X Telecentric Lens with 21X Magnification on 24” Monitor $2,787.22
6332Starrett 6332 .80X Telecentric Lens with 49X Magnification on 24” Monitor $2,315.82
6333Starrett 6333 1.0X Telecentric Lens with 62X Magnification on 24” Monitor $2,315.82
6334Starrett 6334 2.0X Telecentric Lens with 124X Magnification on 24” Monitor $2,315.82
6335Starrett 6335 4.0X Telecentric Lens with 247X Magnification on 24” Monitor $2,953.06
7010Starrett 7010 Clean air kit (positive air pressure kit) $339.74
7430-STRStarrett 7430 Fixture for FOV, VED Mag Checker and Grid $2,115.79
7821Starrett 7821 Adapter Plate for FOV, VED Mag Checker $410.09
7P000Centers & Vees $842.30
7U000Glass Plate Work holder $677.45
8170Cabinet Stand 31” High $1,768.02
8171Cabinet Stand 22” High $1,768.02
8268Starrett 8268 VED Mag Checker for pixel calibration NIST traceable $800.08
8392Starrett 8392 Pivoting illuminator lamp house $1,766.01
8440-1Starrett 8440-1 4" x 7" Calibration standard for pixel calibration and verification NIST traceable $1,540.86
APT60-25-HDVStarrett APT60-25-HDV CNC 60mm Rotary Fixture Quote
APT60-40-HDVStarrett APT60-40-HDV CNC 60mm Rotary Fixture Quote
M3-PDStarrett M3-PD MetLogix Conversion of DXF to PDF $1,507.69
M3-PFStarrett M3-PF MetLogix Profile Fitting Module $1,507.69
M3-TMStarrett M3-TM MetLogix Thread Module $1,507.69

PRODUCT SERIES

ID#Product NamePrice
HDV300-M3-14TL-2LEDStarrett HDV300-M3-14TL-2LED Horizontal Digital Video System Quote
HDV300-M3-14TL-CNC-2LEDStarrett HDV300-M3-14TL-CNC-2LED Horizontal Digital Video System Quote
HDV300-M3-2LEDStarrett HDV300-M3-2LED Horizontal Digital Video System Quote
HDV300-M3-CNC-2LEDStarrett HDV300-M3-CNC-2LED Horizontal Digital Video System Quote
HDV400-EXT-M3-2LEDStarrett HDV400-EXT-M3-2LED Horizontal Digital Video System Quote
HDV400-EXT-M3-CNC-2LEDStarrett HDV400-EXT-M3-CNC-2LED Horizontal Digital Video System Quote
HDV400-M3-14TL-2LEDStarrett HDV400-M3-14TL-2LED Horizontal Digital Video System Quote
HDV400-M3-14TL-CNC-2LEDStarrett HDV400-M3-14TL-CNC-2LED Horizontal Digital Video System Quote
HDV400-M3-2LEDStarrett HDV400-M3-2LED Horizontal Digital Video System Quote
HDV400-M3-CNC-2LEDStarrett HDV400-M3-CNC-2LED Horizontal Digital Video System Quote
