TESA (Hexagon) 05330401 MICRO-SQUARE 600, range 0-610 mm Set

Brand: Brown & Sharpe-TESA-Hexagon
ID#: 05330401-HEX
|MFGID: 05330401
Your Price:
$8,623.06
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

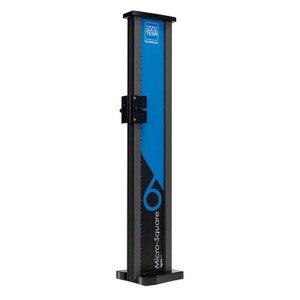

The TESA (Hexagon) 05330400 MICRO-SQUARE 350, range 0-360 mm is the ultimate perpendicularity measuring instrument for professionals looking for the highest precision.

The slide is mounted on a high-precision guideway and ensures a movement guaranteeing a measurement repeatability of 0.5 µm.

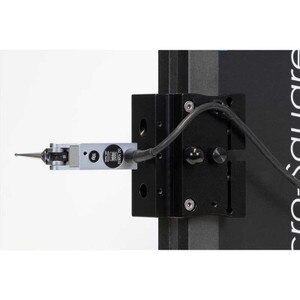

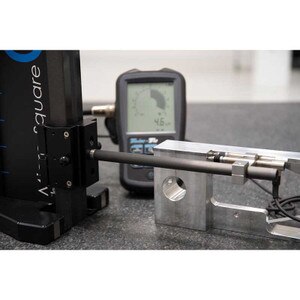

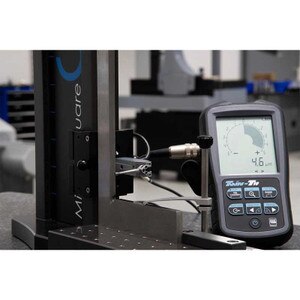

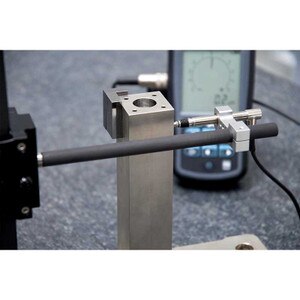

This mechanism combined with the GT 31 inductive probe and the TWIN-T10 display unit allows the result to be displayed quickly.

It is therefore the ideal complement to our famous height gauges for the most precise controls.

Specifications

  • Range:0-610 mm
  • Details:

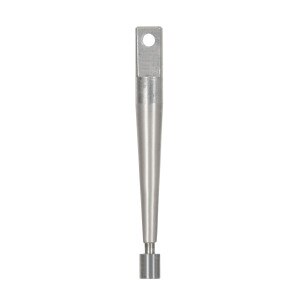

    TESA inductive lever test indicators TESA GT 31 with Ø 2 mm measuring insert, 03210802*, Portable probe display unit TESA TWIN-T10, 04430013*, and Allen key 1.5 mm

    * Can be ordered separately

  • Specifications:
    • High precision
    • Quick measurement
    • Usable in the workshop
    • Simple handling
