Tesa TWIN-T20 Nano Display Unit for Heidenhain Probes
Brand: Brown & Sharpe-TESA-Hexagon
ID#: 04430020-HEX
|MFGID: 04430020Product Information
Description

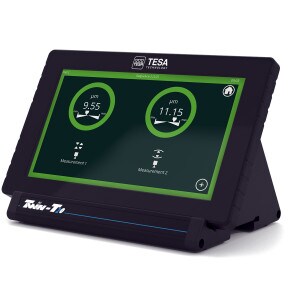

TESATRONIC TWIN-T20 nano
High-precision metrological display unit featuring dual display for HEIDENHAIN probes or other measuring instruments.
The TWIN-T20 nano digital display unit is very similar to the TWIN-T20 digital display unit. The main differences are the ability to connect two HEIDENHAIN probes instead of TESA probes as well as a new digital display mode.
Connecting HEIDENHAIN probes means that the unit is compatible with various measuring applications on the market thus complying with the highest metrological requirements.
This display unit is compatible with all HEIDENHAIN probes, types 1 Vpp and 11 μApp.
The digital indicator display makes it easy to access changes in the standard value and dynamic mode (max., min., etc.) from the measurement screen.
Specifications
- Details:
- Units: mm / in
- Standard: DIN 32876
- Max. perm. errors: Depending on the connected probe
- Resolution: 0,001 µm / .0000001 in
- Material: Housing: aluminium

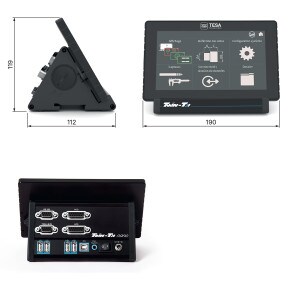

- Dimensions: Housing: 112 x 190 x 119 mm, Screen: 155 x 87 mm
- Degree of protection: Front side: IP65
- Particular characteristic(s): At 20°C and relative humidity of ≤ 50 %: Zero drift ≤ 0,15 μm / °C
- Weight: 1,2 kg
- Power supply: 100 ÷ 240 V, 50 ÷ 60 Hz, 0,6 A
- Included in delivery: TWIN-T20 nano display unit Power supply + EU, UK, US and CH cables, Self-test report, Quick start manual including a declaration of conformity
- Data output(s): TLC, RS232, USB HID
Features
• 2 HEIDENHAIN probe inputs• Simultaneous display of 2 values
• Static or dynamic measurements
• Large 7” touch screen
• 4 integrated display styles to simplify reading of probes
• Intuitive measurement setting
• Equipped in the standard configuration for data collection and transfer
