602030-9025-000, Ø1.5 mm M5, Cube star stylus, stepped, ruby sph, tung carb shaft, Length: 45.0 mm

Brand: ZEISS
ID#: 602030-9025-000-ZSS
|MFGID: 602030-9025-000
$226.15
QuantityPrice

Product Information

Description

M5, Cube star stylus, stepped, ruby sphere, tungsten carbide shaft, Length: 45.0 mm

Specifications

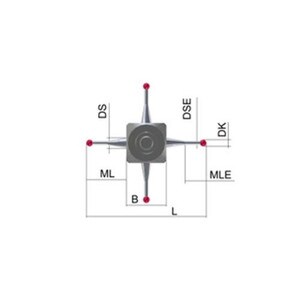

  • Details:Product Type: Stylus
    Connection Type In: M5
    Ø Sphere (DK): 1.5 mm
    Length (L): 45.0 mm
    Application: Tactile
    Ø Shaft (DS): 2.0 mm
    Ø Shaft (DSE): 1.0 mm
    Measure Length: 15.0 mm
    2. Meas. Len.: 6.5 mm
    Stylus Type: Star Stylus
    Stylus Tip: Sphere
    Tip Material: Ruby
    Stem Material: Tungsten Carbide
    Width (B): 15.0
    Weight: 15.8
