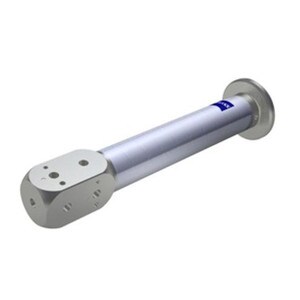

ZEISS 626107-2200-160 Plate Extension with double cube, ZEISS REACH CFX® 3+, Length: 253.0 mm
Brand: ZEISS
ID#: 626107-2200-160-ZSS
Product Information
Description
Plate Extension with double cube, ZEISS REACH CFX® 3+, Length: 253.0 mmSpecifications
- Details:Product Type: Extension
Connection Type In: ThermoFit Pro
Length (L): 253.0 mm
Application: Extend
Ø Body (DG): 20.0 mm
Measure Length: 263.1 mm
Stylus Type: Extension
Width (B): 20.0
Material: Carbon Fiber
Connection Type Out: Double Cube
Accuracy Level: Medium - CFX 3
Weight: 124
ZEISS ThermoFit® Pro becomes REACH CFX® 3+ - new name, same performance. ZEISS REACH CFX® 3 recommended for: ZEISS PRISMO, ZEISS PRISMO fortis, ZEISS ACCURA and comparable CMMs.
Features
✔ Light weight - build complex stylus systems
✔ Thermally stable - no thermal expansion of the material and associated loss of precision
✔ Statically stiff - maximum stiffness allows faster scanning without loss of precision
✔ Carbon fiber tubes - developed by ZEISS
